IGBT, Diode & Mosfet

IGBTs, Diodes, and MOSFETs are critical semiconductor components in power electronics. MOSFETs are ideal for high-frequency, low-voltage, and low-current applications. IGBTs combine MOSFET-like gate control with Bipolar Junction Transistor (BJT) efficiency, making them ideal for high-power, high-voltage, and lower-frequency applications. Diodes act as one-way valves for current flow.
Key Differences and Descriptions

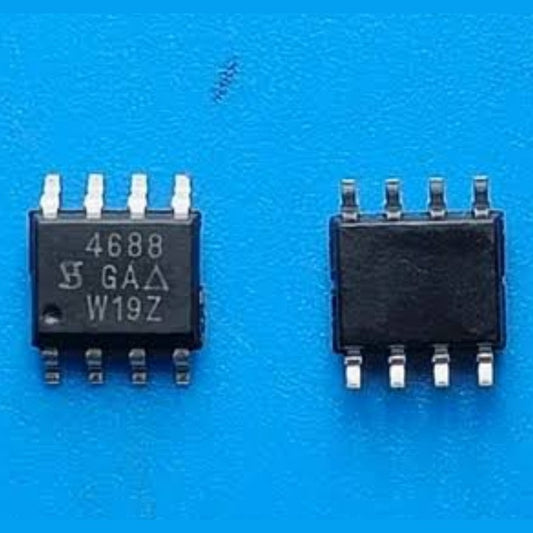

  • MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor):
    • Description: A unipolar, voltage-controlled transistor with high input impedance and high-speed switching capabilities (MHz range).
    • Structure: Three terminals: Gate, Drain, Source.
    • Applications: Low-voltage (<250V) applications, power supplies, motor control (low power).
    • Pros/Cons: Fast, low switching losses, but limited power handling.

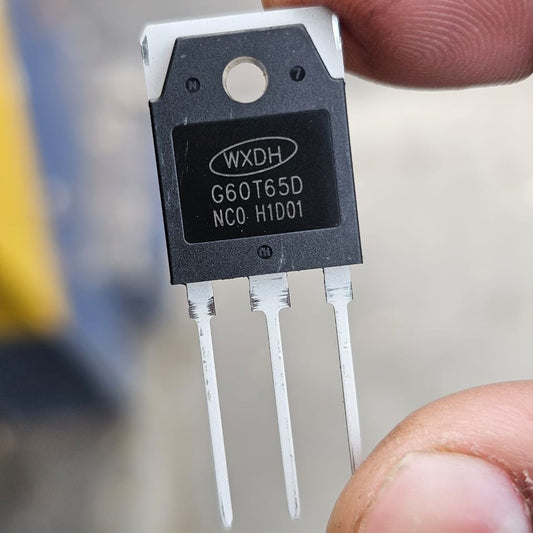

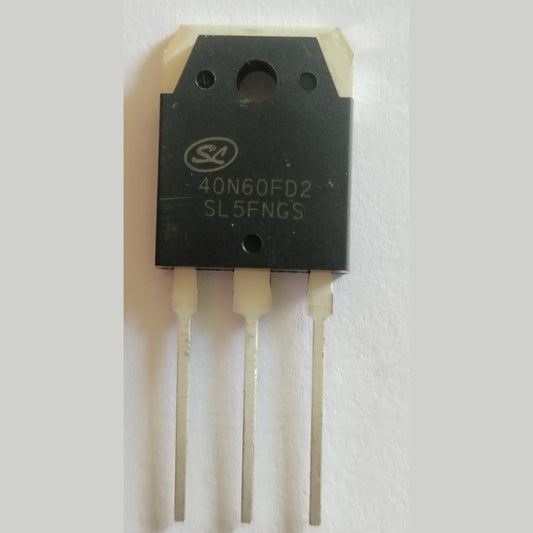

  • IGBT (Insulated Gate Bipolar Transistor):
    • Description: A four-layer (PNPN) device combining the high-impedance gate of a MOSFET with the low-saturation voltage (high current density) of a BJT.
    • Structure: Three terminals: Gate, Collector, Emitter.
    • Applications: High-voltage (>1000V) and high-current applications, such as motor drives, inverters, and EV, typically under 20kHz.
    • Pros/Cons: High efficiency at high power, but slower than MOSFETs.

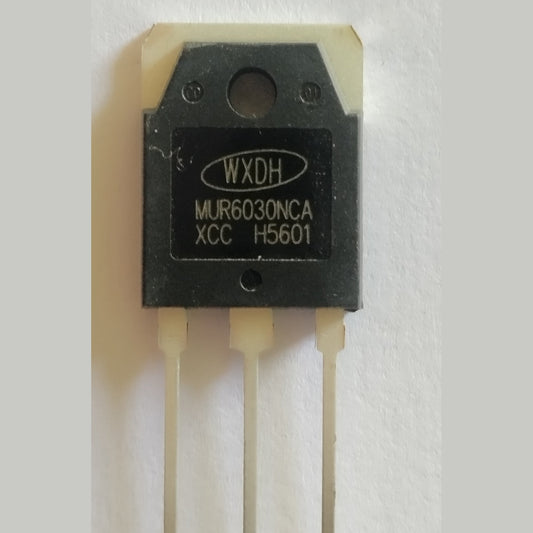

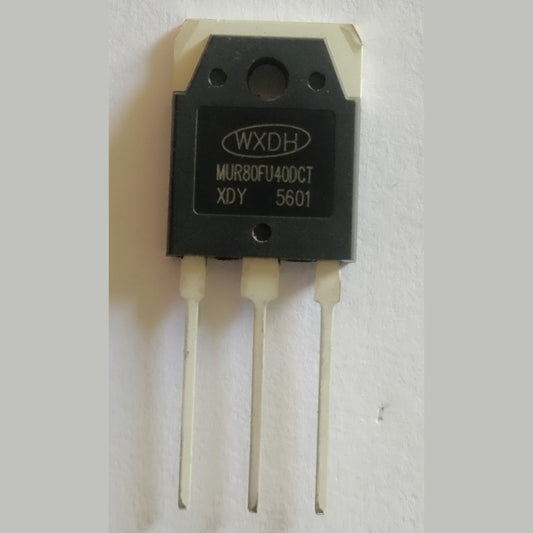

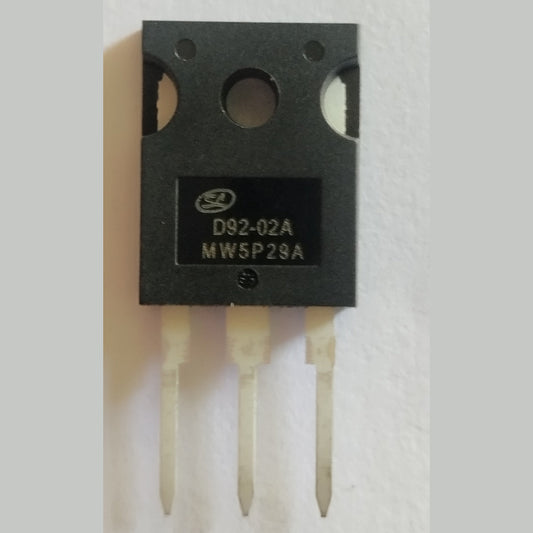

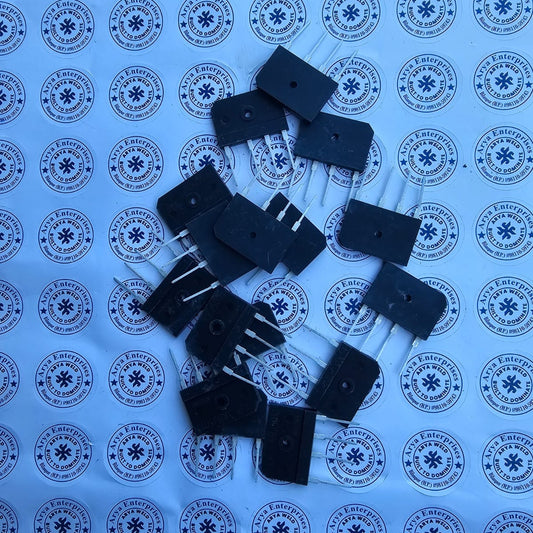

  • Diode:
    • Description: A two-terminal device that allows current to flow only in one direction.
    • Role: Used as a freewheeling diode in conjunction with transistors to protect them from reverse voltages and manage reverse current.

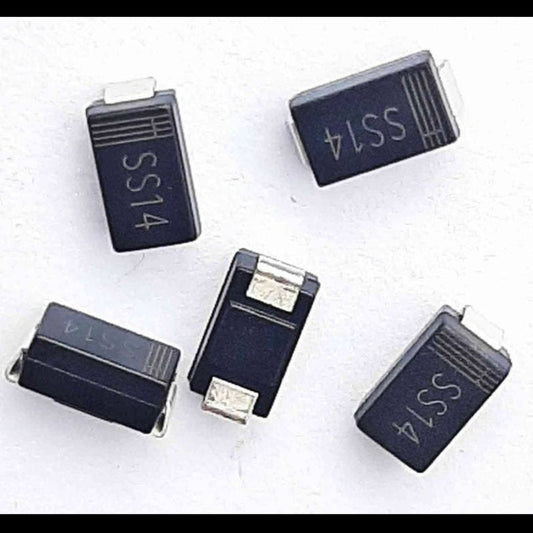

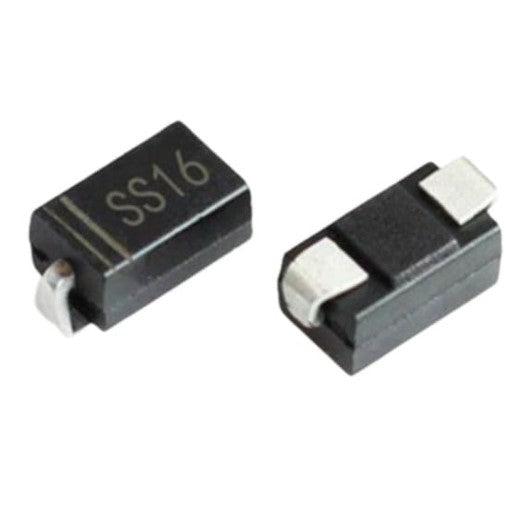

    • Types: Standard, Schottky, Ultra-fast recovery (for high-frequency switching).
